Remote Reading (AMR)

Smart Metering with Wehrle MODULARIS

All Wehrle water meters with the open MODULARIS-interface can be quickly adapted to be integrated in a range of remote readout systems. Whether you have chosen stationary systems (AMR = Automatic Meter Reading) or mobile reading devices, whether wired (M-Bus, impulse) or wireless (OMS, proprietary). A wide range of manufacturers have developed market-specific solutions for Wehrle water meters.

Selecting Wehrle water meters ensures that you remain flexible at all times. You can build on tried and tested meter technology and retrofit meters at any time without compromising the convenience and reliability of remote readouts.

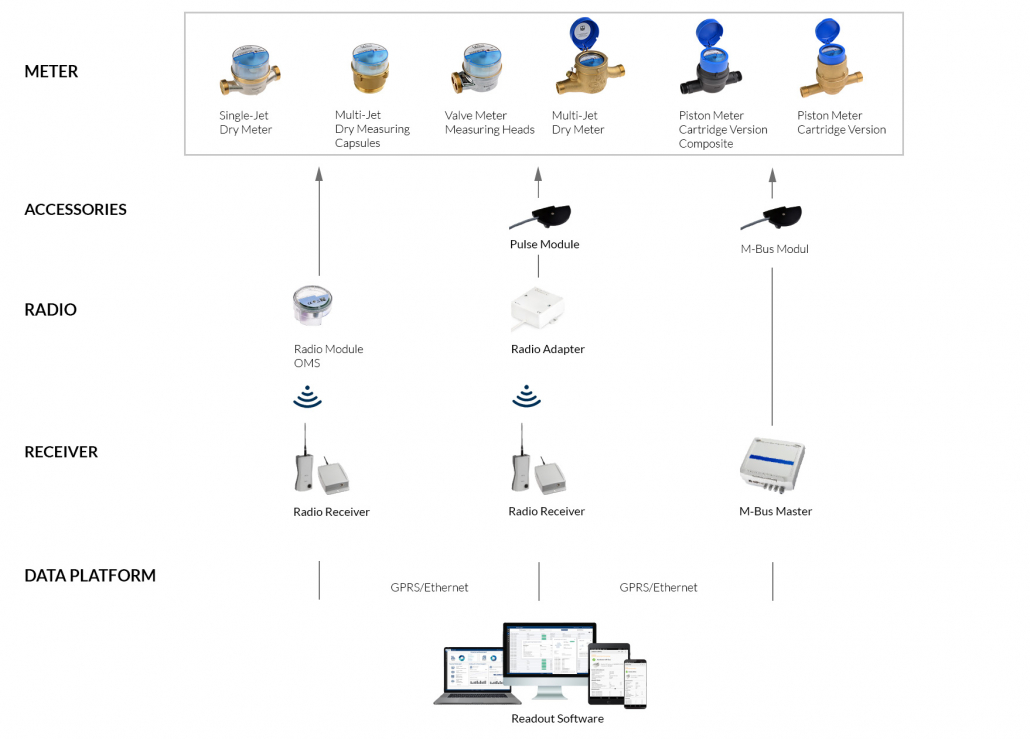

Remote Reading Options (AMR)

MODULARIS Pulse Generator, S0 according to DIN 43864 alternatively with
– 1 Litre per pulse
– 10 Litres per pulse
– 100 Litres per pulse

MODULARIS M-Bus module according to EN 1434-3

MODULARIS radio module, frequency range 433 MHz or 868 MHz (OMS)

Module zur Fernauslesung

Maximum convenience through AMR solutions

Walk-by / Drive-by solution

  • Recording and storage of consumption data inside the radio module
  • Reading of stored data via mobile reading device
  • Access to building no longer necessary

Walk-By Drive-By Auslesung

Retrofitting with Modularis Radio module

  • 868 MHz OMS-conformity (Open Metering System) or 433 MHz (wider reception and transmission range)
  • Uni-or bidirectional transmission procedure
  • Individually parameterizable
  • Data recording via walk-by/drive-by
  • Consumption data permanently stored
  • Battery lifetime of up to 12 years
  • Detection of rotation direction
  • Manipulation detection
  • International protection code IP68

Fernauslesung

Interest in our product?

Don’t hesitate to contact us.

Mail:     Sales METERING
Tel.:     +49 7723 940-0

  • Data sheet
    English (708 KB)

Remote reading options of multi-jet wet meters

  • Pulse module for multi-jet wet meters, S0 according to DIN 43864 alternatively with
    – 10 Litres per pulse
    – 100 Litres per pulse
  • For retrofitting on water meter
  • Battery lifetime 12 years
  • International protection code IP 68

Only possible if meter or measuring unit is prepared with:
– Fixing ring (transparent)
– Modulation pointer AMR

  • Data sheet
    German (156 KB)
  • Original Operating Instructions
    German (202 KB)

Mehrstrahl-Nassläufer WVG Q3 4 190mm G1B mit Impulsmodul

Nassläufer Impulsmodul mit Verschluss
