You are here: Home / Metering / Water / Single-Jet Dry Meters / Single-Jet Dry Meter WECOUNT

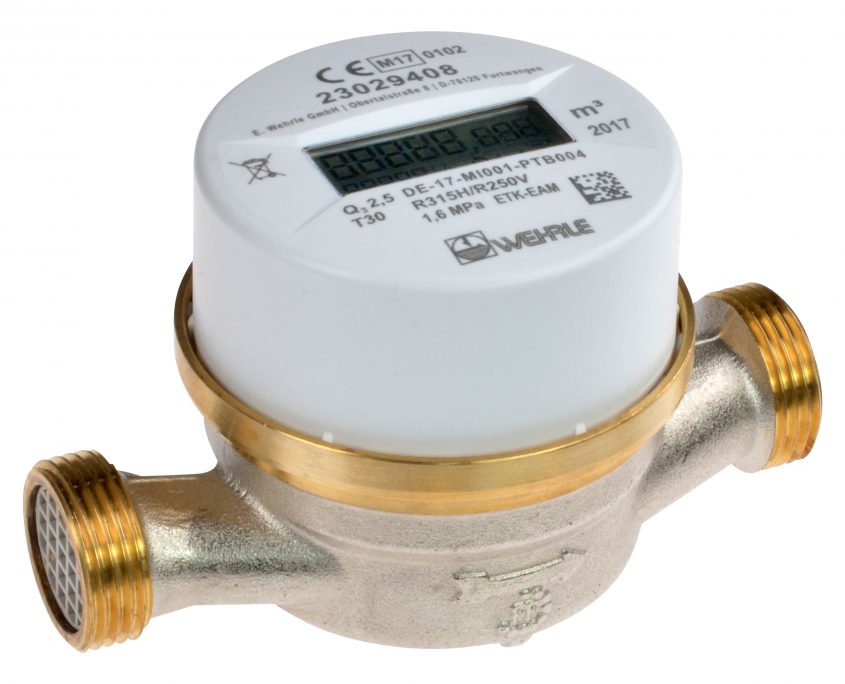

Single-Jet Dry Meter WECOUNT

ETK-EAM, ETW-EAM

The Electronic Water Meter of the WECOUNT product family is the newest Single-Jet Meter generation with integrated OMS radio. The meter impresses with incomparably high measuring accuracy and extremely low starting flow rate.

  • Integrated radio, flexibly programmable (Walk-by/Drive-by)
  • For direct integration into OMS compliant AMR remote readout systems (T1-Mode, C1-Mode)
  • Longterm data logging (storage of 1 due date value, 15 monthly values and 480 daily values)
  • Battery monitoring, Battery life up to 16 years
  • Backflow and manipulation detection as well as notifications for leakage and pipe burst
  • Inductive device interface for parameterization
  • Starting flow rate from 1 l/h
  • Temperature range up to 50 °C (cold) and up to 90 °C (warm)
  • Nominal flow Q3 2,5 up to Q3 4, Nominal size DN15 up to DN20, Length 80 mm up to 165 mm
  • MID measurement accuracy class (Q3/Q1) up to R500 horizontal and R315 vertical(standard R160H/V)
  • Protection class IP68
Interest in our product?

Don’t hesitate to contact us.

Mail:     Sales METERING
Tel.:     +49 7723 940-0

  • Data sheet
    English (1 MB)
  • Radio configurator WECOUNT
    English – webinterface
  • Configuration-App µconfig
    Link to Microsoftstore
  • Quick Guide for Installation
    Multilingual (2,5 MB)
  • Original Operation Instructions
    English (3 MB)
  • Manuel d’utilisation
    French (3 MB)
  • Manual de instrucciones
    Spanish (3 MB)
  • Istruzioni per l’uso
    Italien (3 MB)
  • CE EC declaration of conformity
    Multilingual (51 KB)
