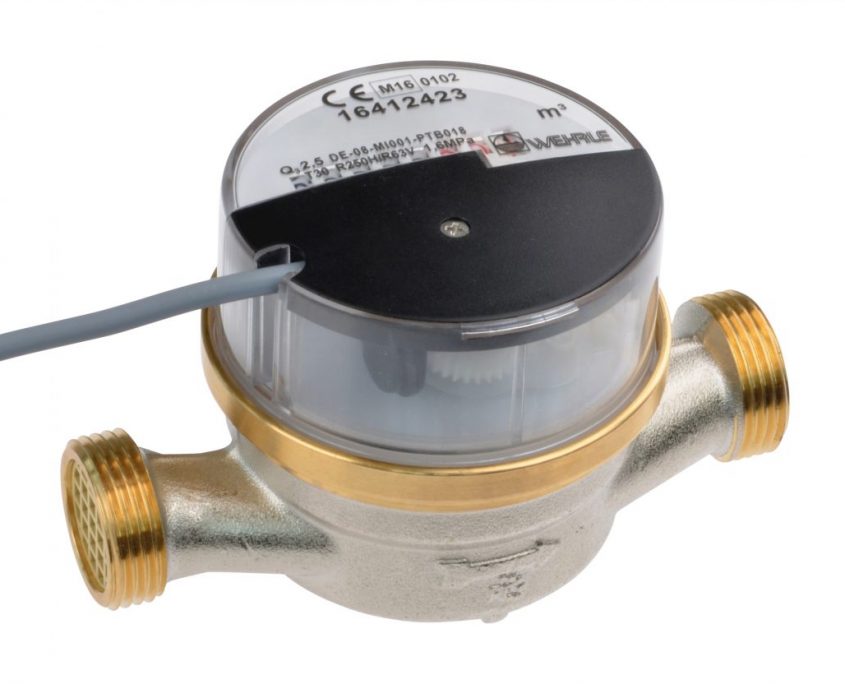

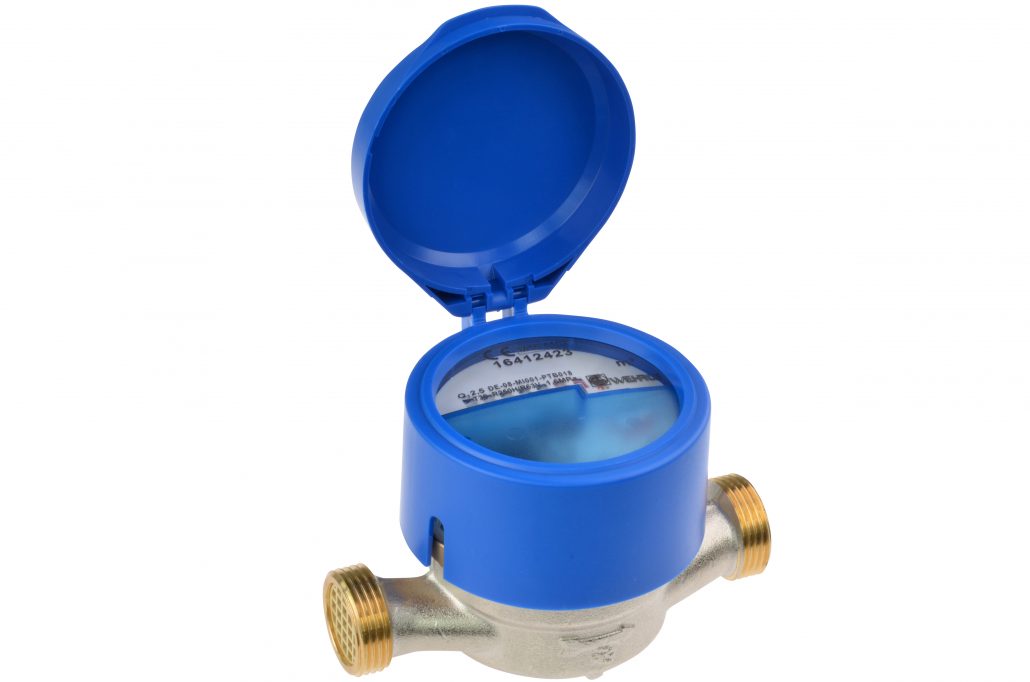

Single-Jet Dry Meter MODULARIS

ETK-EAX, ETW-EAX
Our Wehrle single-jet dry meters guarantee precise measuring results and exceptional reliability. The absolute separation of wet and dry area protects the totalizer from deposits and corrosion. Therefore its rollers are always legible.
  • Ready for integration into any AMR system
  • Temperature range up to 50 °C (cold) and up to 90 °C (warm)
  • Nominal flow Q3 2,5 up to Q3 4
  • Nominal size DN13 up to DN20
  • Length 80 mm up to 130 mm
  • MID measurement accuracy class (Q3/Q1) up to R250 horizontal and up to R80 vertical
  • 360° rotatable 8-digit totalizer
  • Nickel-plated brass body
  • Maximum pressure load 1,6 MPa
  • Protection class IP64
Interest in our product?

Don’t hesitate to contact us.

Mail:     Sales METERING
Tel.:     +49 7723 940-0

  • Data sheet
    English (1 MB)
  • Quick Guide for Installation
    Multilingual (2,5 MB)
  • Original Operation Instructions
    English (2 MB)
  • Manuel d’utilisation
    French (3 MB)
  • Manual de instrucciones
    Spanish (3 MB)
  • Istruzioni per l’uso
    Italien (3 MB)
  • CE EC declaration of conformity
    Multilingual (51 KB)
  • ACS drinking water certificate
    Attestation de Conformité Sanitaire – French (1 MB)
  • PZH drinking water certificate
    Produkt z Atestem
    Polish (150 KB)
